The DCEL data structure: a C++ implementation

05Nov'11

Written by Leonardo Fischer

Hi, When working with computer graphics, it’s very common to deal with discrete surfaces (for example, triangle meshes). The simplest approach is to store a triangle mesh as a list of vertices and the indices that define the triangles, and it is very efficient if you just need to draw the scene. But it doesn’t work very well if you need to answer advanced queries, such as what are the edges that start on a given vertex or what are the neighbor faces of one given face During my master thesis I needed to answer such queries. And I found that the DCEL Data Structure would be perfect for my case. But I didn’t like the implementations that I found. For example, this one couples too much the DCEL implementation with the data that I need to store within the DCEL. And this one is a powerfully monster that should do everything I need, but only after tame de monster. I decided to write my own DCEL. I tried to keep it simple to understand, but complete enough to do all the things that I need. Basically, the vertices, edges and faces in my DCEL are containers. I also implemented a mesh template that receives the types that you want to put inside these objects. Finally, the mesh has lots of helper methods that very simple to use to manipulate the DCEL in the most common cases. I tried to keep its use in the same way that you would use a std::list.

But what is this DCEL I don’t stop talking about?

The Doubly-Connected Edge List is a data structure to store the topological structure (i.e. the relation between faces, edges and vertices) of a surface. It doesn’t solve every problem on earth, but is heavily used in algorithms that deal with surface operations. I will not go deep into how it works, but I will try to scratch its surface. It works like a double-linked list.
A DCEL is a set of faces, half-edges and vertices. Yes, an edge divided by two. A pair of half-edges forms an edge, and they are called twins. So, each half-edge has a pointer to its twin half-edge, in order to reconstruct the whole edge. But why divide an edge by two? Each half edge is associated to one face on one side of the edge, and one vertex on one end of the edge. In other words, a half-edge has a face pointer and an origin pointer. And where is the “doubly-connected” thing? Each half-edge has a next pointer and a previous pointer. The contour of a face is defined by a sequence of half-edges linked by their next and previous pointers. Finally, a face has the boundary pointer which points to one half-edge on its contour. And the vertex has an incident pointer that points to one half-edge that starts on that vertex. But why this data structure is so interesting? If you inspect it carefully, you will see that everything is connected to everything in a very organized way. From one face, you can walk through his contour by following the next (or previous) pointers of its boundary. From one half-edge, you can access one vertex through the origin pointer and the other vertex following its twin->origin pointers. In the same way, from a half-edge you can access the face on which it is part of the contour (by its face pointer), and the other face by its twin half-edge (twin->face pointer). As you can see, it is easy to answer the questions from the beginning of the post. What are the edges that start on a given vertex? Pick the vertex. The first half-edge is in its incident pointer. Call it current. For the next half-edge, pick the previous->twin half-edge of the current half-edge (and call this new one the new current). Keep getting these previous->twin pointers until you reach the first half-edge, and you did it!!! What are the neighbor faces of one given face? This one I left as exercise ツ If you want to dive in the DCEL data structure, I recommend you this page. Or this book.

Building a DCEL using templates

From now on, I’ll assume that you are an expert on DCEL, and I’ll focus on the DCEL implementation. Let’s start by creating a template for the three main objects: FaceT, HalfEdgeT and VertexT (don’t worry about the “T” in the names. It will “disappear” latter). These templates will hold the objects that the face, vertex and half-edge should hold as an internal data pointer. I could put a void* on these objects, but this way the object and the data associated will be in the same region of the memory (thus, improving cache hit). Also, it still allows you to use a pointer to any type want.
template
class FaceT {
public:
    inline FaceDataT& getData() {
        return data;
    };
private:
    FaceDataT data;
};

template
class HalfEdgeT {
public:
    inline HalfEdgeDataT& getData() {
        return data;
    };
private:
    HalfEdgeDataT data;
};

template
class VertexT {
public:
    inline VertexDataT& getData() {
        return data;
    };
private:
    VertexDataT data;
};
Now, let’s fill the pointers between the objects. Before we add the pointers itself, I need to create forward declarations for the templates.
template
class FaceT;

template
class HalfEdgeT;

template
class VertexT;

template
class FaceT {
    typedef HalfEdgeT HalfEdge;
    typedef FaceT Face;
public:
    //getters and setters, with an inline tip to the compiler =)
private:
    HalfEdge* boundary;
    FaceDataT data;
};

template
class HalfEdgeT {
    typedef VertexT Vertex;
    typedef HalfEdgeT HalfEdge;
    typedef FaceT Face;
public:
    inline void setTwin(HalfEdge* newTwin) {
        this->twin = newTwin;
        newTwin->twin = this;
    };
    inline void setNext(HalfEdge* newNext) {
        this->next = newNext;
        newNext->prev = this;
    };
    inline void setPrev(HalfEdge* newPrev) {
        this->prev = newPrev;
        newPrev->next = this;
    };
    // all the other getters and setters as usual
private:
    HalfEdge* twin;
    HalfEdge* next;
    HalfEdge* prev;
    Vertex* origin;
    Face* face;
    HalfEdgeDataT data;
};

template
class VertexT {
    typedef VertexT Vertex;
    typedef HalfEdgeT HalfEdge;
public:
    //all the getters and setters as usual
protected:
private:
    HalfEdge* incidentEdge;
    VertexDataT data;
};
Finally, let’s create the Mesh holder to keep all these objects. It will receive as template parameter all the three data types that the other objects will hold. Also, is here that the “T” from the VertexT, …, will disappear.
template
class Mesh {
    typedef Mesh MeshT;
public:
    typedef VertexT Vertex;
    typedef HalfEdgeT HalfEdge;
    typedef FaceT Face;

    typedef VertexDataT VertexData;
    typedef HalfEdgeDataT HalfEdgeData;
    typedef FaceDataT FaceData;

    // Several helper methods to deal with these objects.
    // Also, the getters and setters.

private:
    std::vector vertices;
    std::vector faces;
    std::vector edges;
};

Voilá!!! But this is everything? No.

The basis of my DCEL implementation is here. But over it, I’ve implemented several other helper methods to deal with the DCEL. It was designed to deal with faces of any shape, such as triangles, squares or megagons. But triangles are so common and used in computer graphics that I developed only the method that creates triangular faces on it. So, instead of creating the vertices, faces and edges and link everything together, you can just create the vertices and call an createTriangularFace() method on the Mesh class that the needed faces and half-edges are created and linked for you.

I also developed some helper classes. One is an EdgeIterator. If it receives a Face pointer in the constructor, it will iterate over the half-edges of the contour of that face. And if it receives a Vertex pointer, it will iterate over the half-edges that starts on that vertex. Also I developed two loaders for it, which can load common .OBJ files and some .PLY files (through this library). Finally, I developed methods to load and save DCEL structures into files, which is able to deal with the DCEL structure and the data stored in it.

You can download the entire source files here, or download/branch it on my GitHub account. The projectcontains all the headers and .cpp files for this DCEL. It also contains the main.cpp, which has some examples of how to use it. The code works on the Visual Studio 2008 and 2010. And if you have any doubt or suggestion, please leave a comment bellow ツ

Tags:

2 comments

Going to the supermarket

21Oct'11

Written by Leonardo Fischer

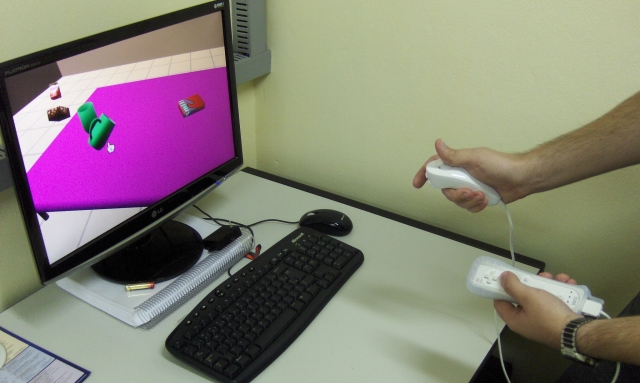

A few months ago, I developed with some friends at UFRGS a solution for the 3DUI Grand Prix. In a few words, it was a contest to see who develop the best solution to interacting with a virtual market.

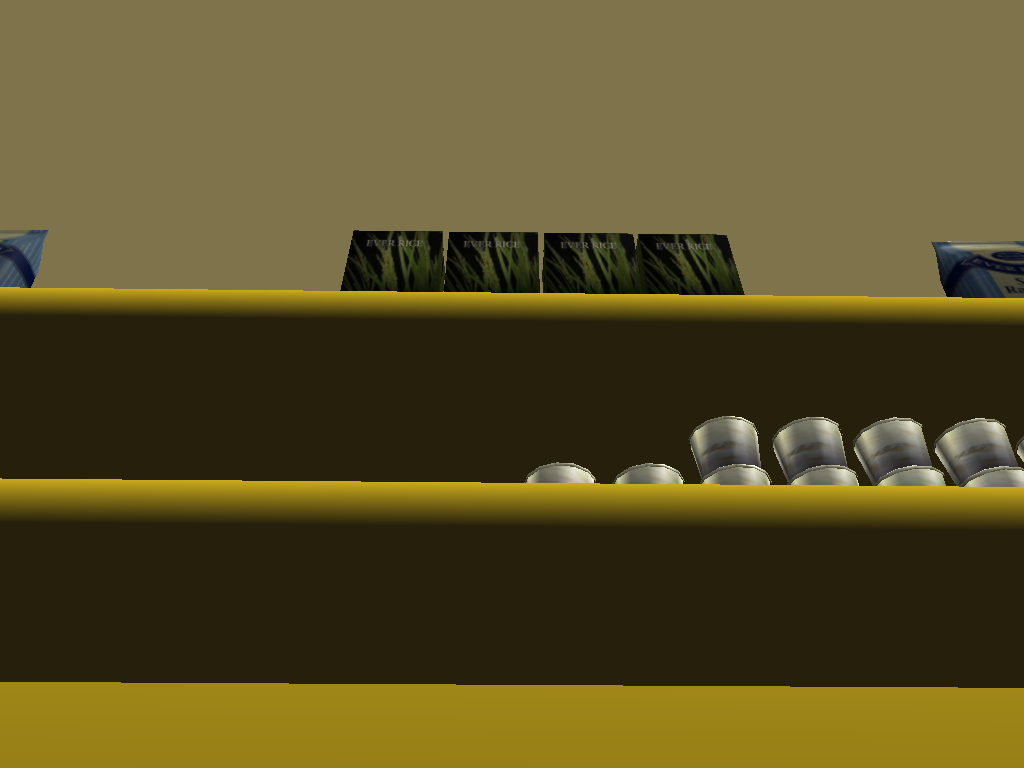

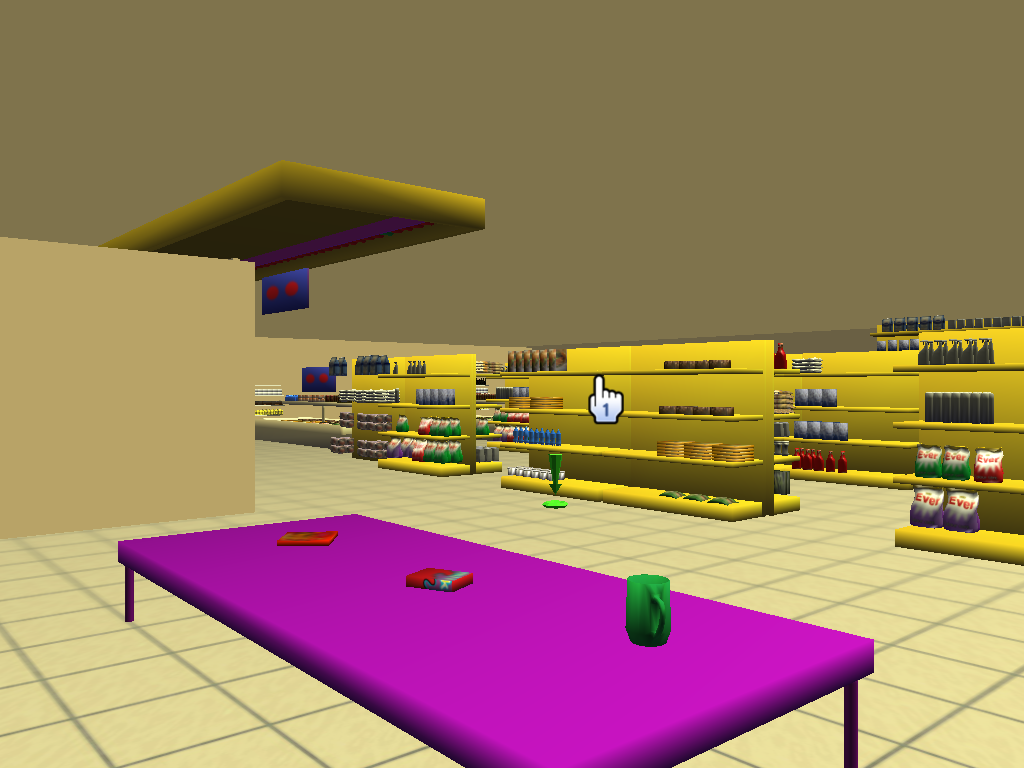

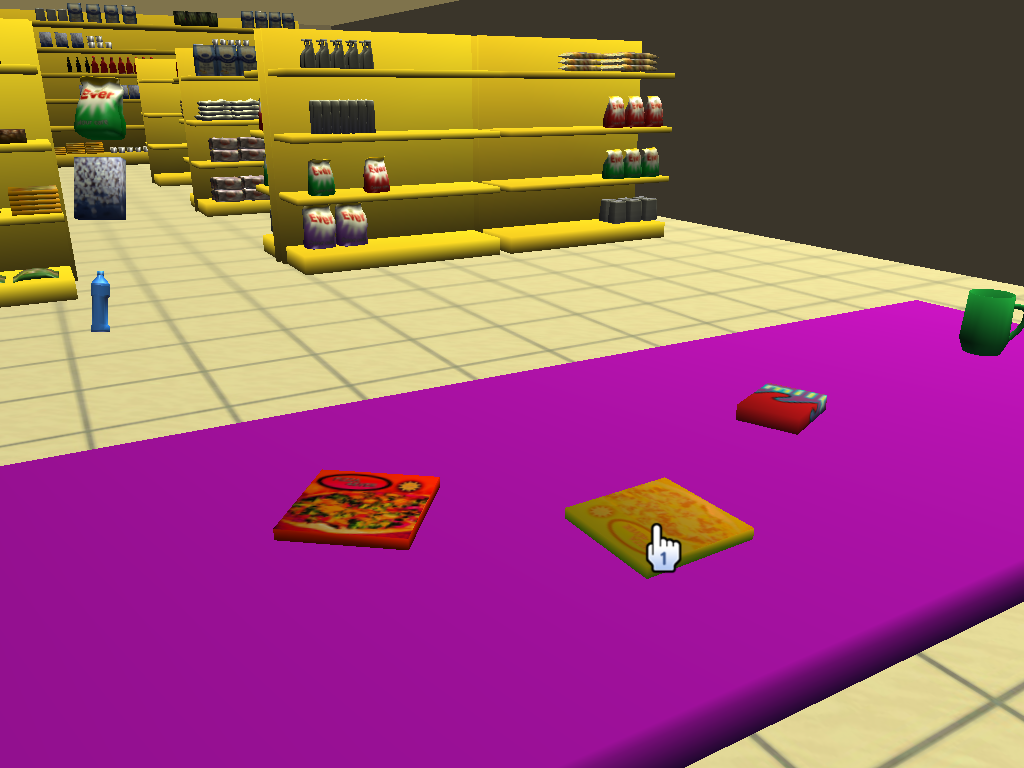

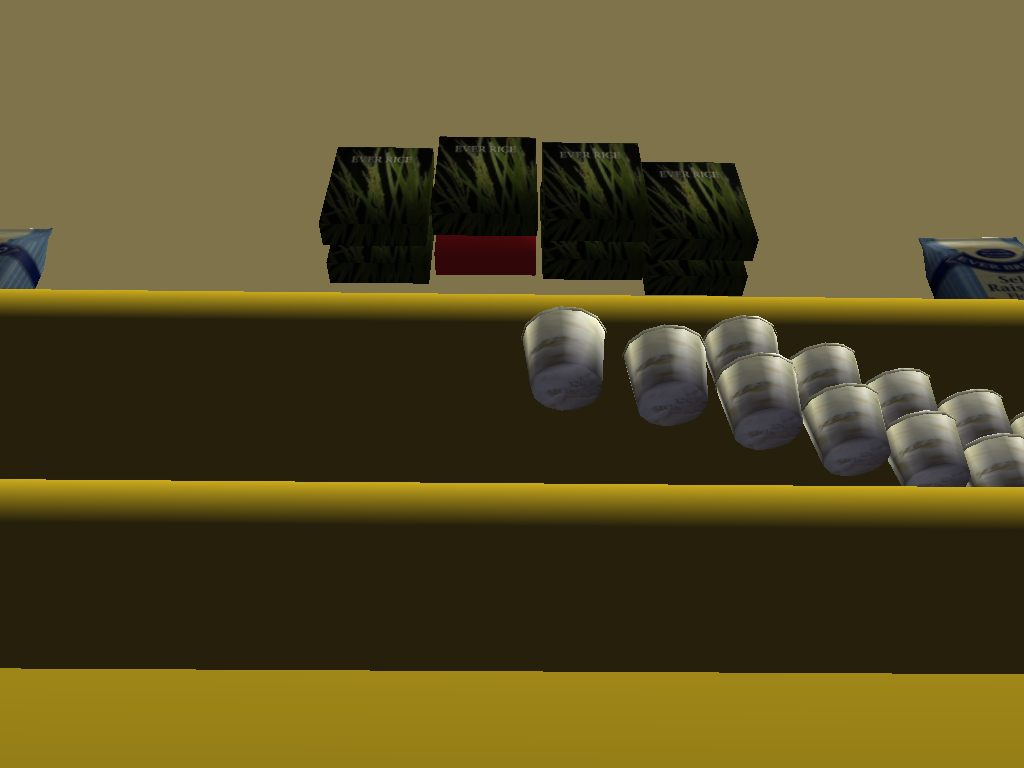

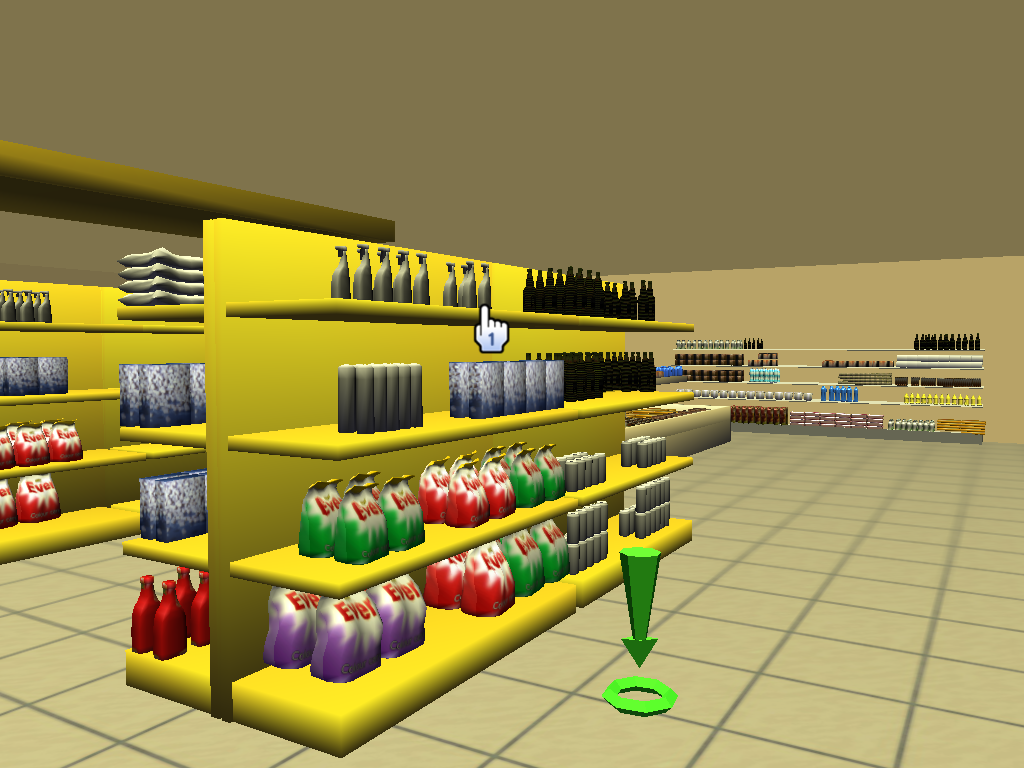

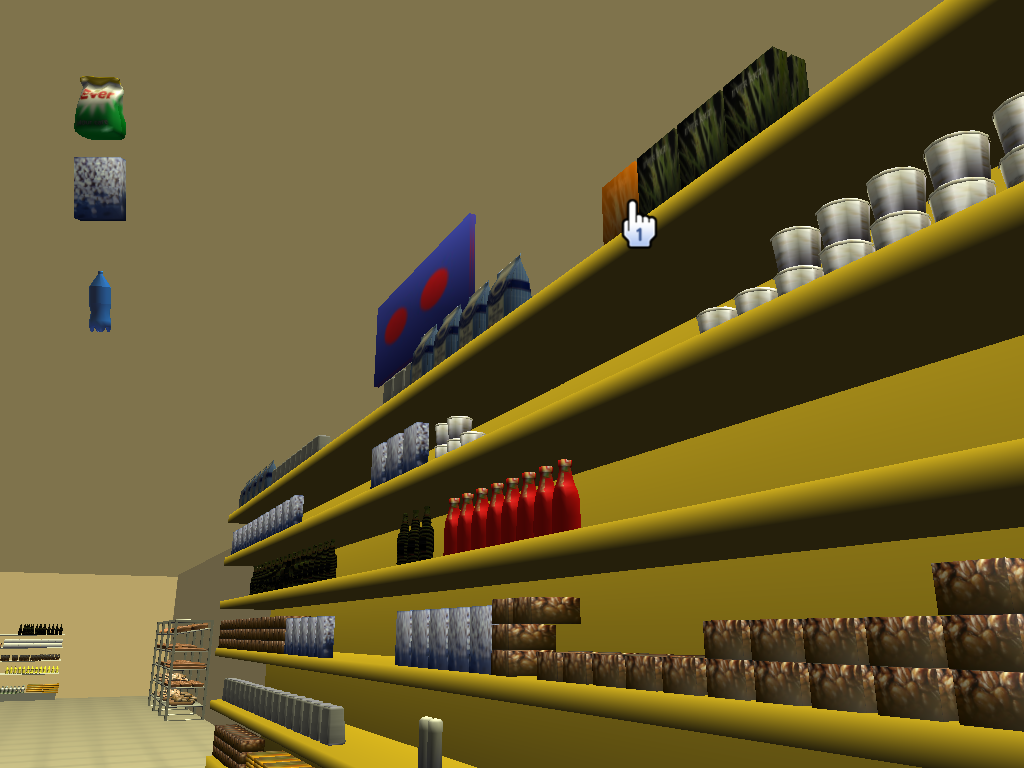

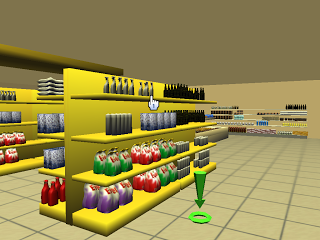

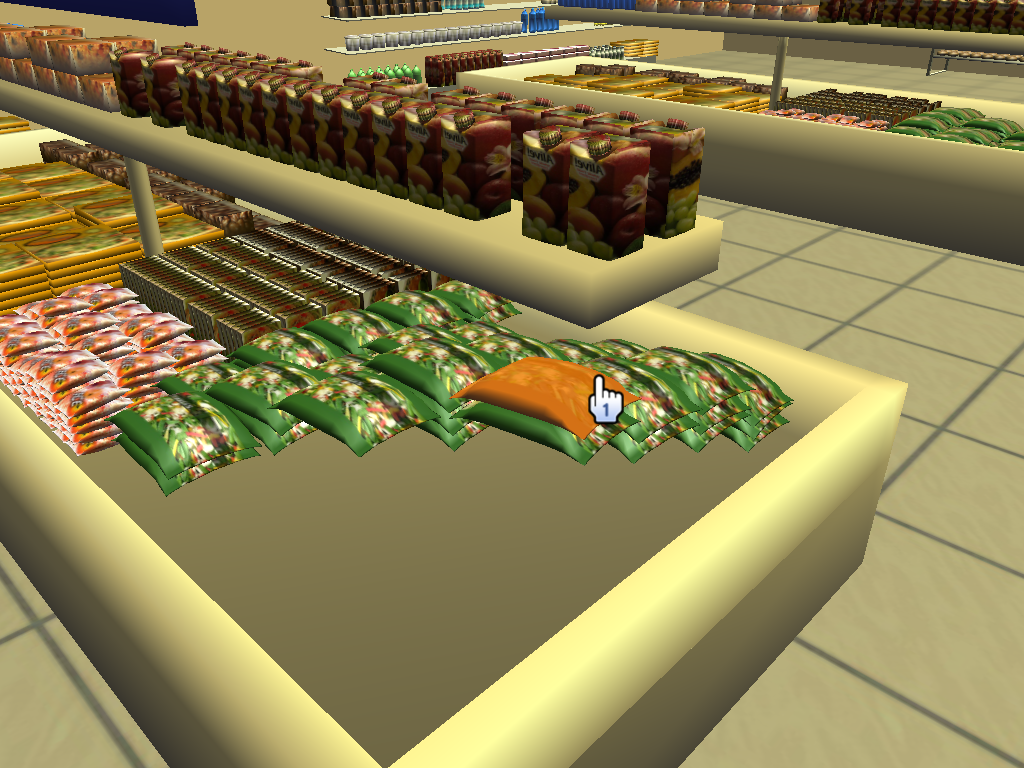

For now, I’ll just share the code, the paper and some other stuff about this work. So, please fell free to download the article and the source code. Below, you can see some images and a video of it running.
